How to draw a Chinese chess board in AutoCAD 2007 - Steps to draw a Chinese chess board

How to use AutoCAD 2007 to draw a Chinese chess board? Here I will share with you AutoCAD Here are the steps for drawing a Chinese chess board in 2007. You can follow these steps to draw.

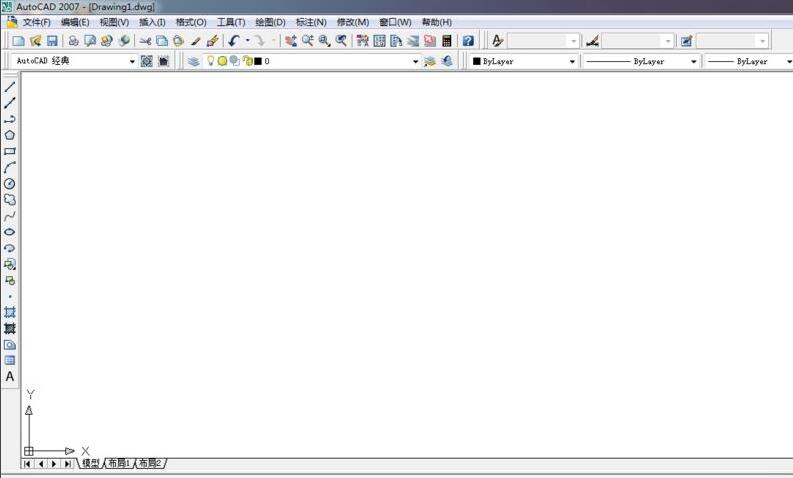

The first step is to open the AutoCAD 2007 software on your computer.

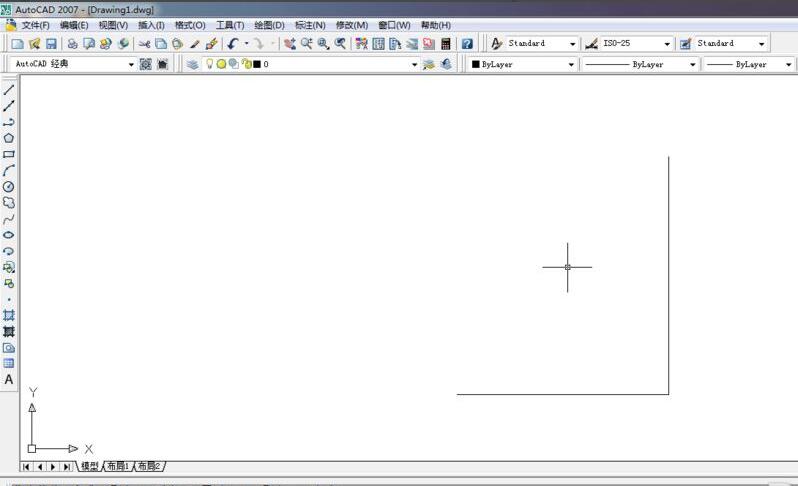

The second step is to hold down F8, turn on orthogonal, enter the L command in the command bar, confirm with a space, and draw two vertical straight lines, with the horizontal line being 800 and the vertical line being 900, as shown in the figure.

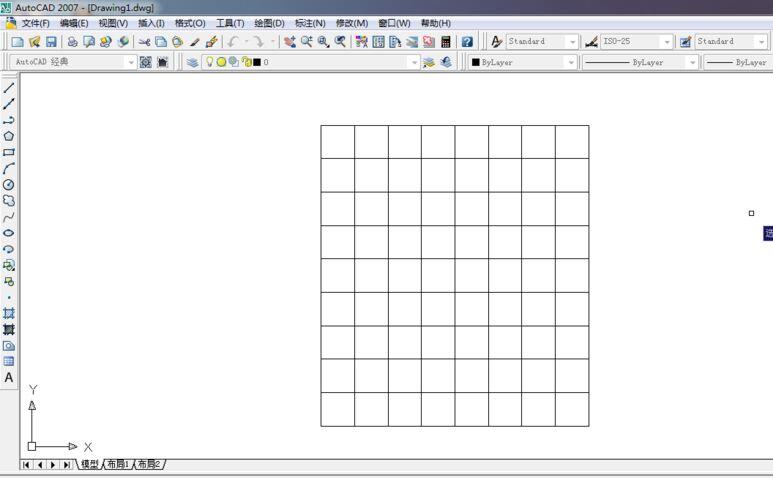

The third step is to select the offset command on the common toolbar, enter a distance of 100, and offset 9 horizontal lines upward and 8 vertical lines to the right, as shown in the figure.

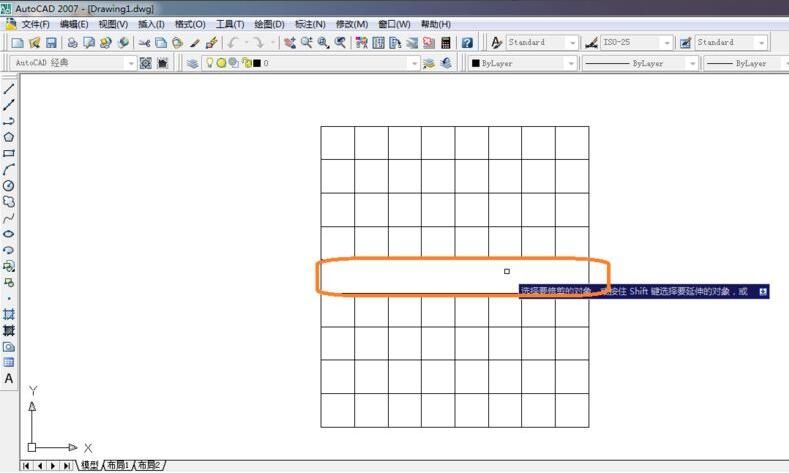

The fourth step is to select the trim command on the common toolbar, confirm with a space, and trim the vertical line in the middle of the chessboard, as shown in the picture.

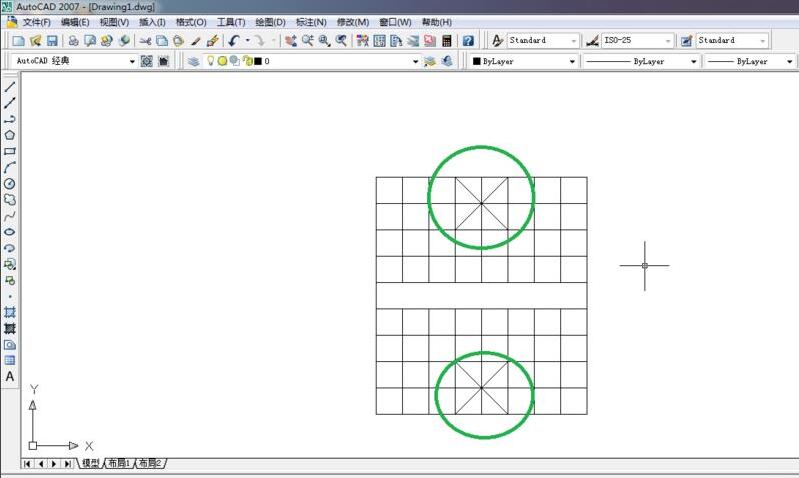

The fifth step is to use the straight line command to draw a diagonal line (private line), as shown in the figure.

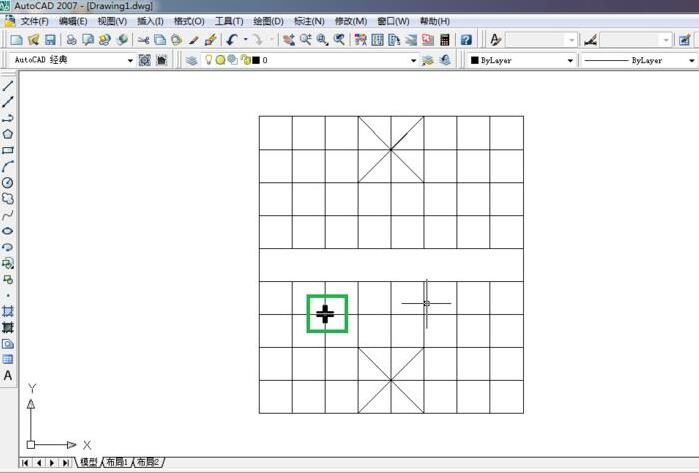

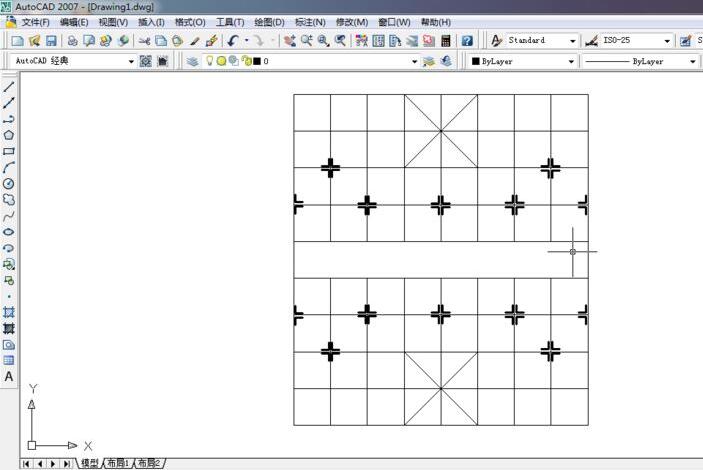

The sixth step is to draw the pawn positions, then copy and mirror them to draw all the pawn positions and gun positions, as shown in the picture.

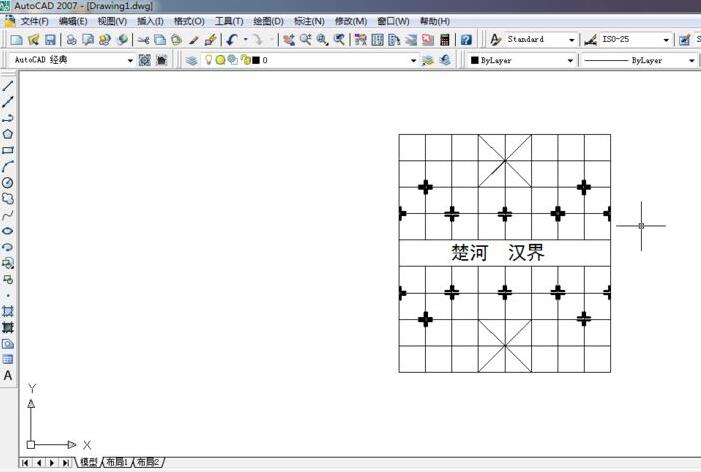

The seventh step is to use text commands to edit the Chuhe-Hanjie font, modify the font size, it is recommended to adjust it to 48, select alignment, and a Chinese chessboard like this will be drawn.

The above are the steps for drawing a Chinese chess board in AutoCAD 2007 brought by the editor. I hope it can help everyone.
